How a Microfluidic Ecology Reveals the Spatial Evolution of Phage Resistance

This week’s research highlight focuses on how microfluidics can help us understand the evolution of phage resistance in spatially structured bacterial environments. The article “Gradient metapopulation microfluidic ecologies shape genetic and biofilm drivers of T4r phage resistance in E. coli,” published in npj Biofilms and Microbiomes, uses a microfabricated ecology to ask a key question: what happens when bacteria face phages inside a structured landscape rather than in a well-mixed laboratory flask?

Bacteriophages are viruses that infect bacteria, and they are gaining attention as potential tools against antibiotic-resistant infections. But bacteria do not encounter phages in simple, uniform environments. In real microbial habitats, including many infection sites, bacteria experience gradients, compartments, nutrient variation, and physical barriers. This is where microfluidics becomes specially powerful. A microfluidic device can recreate small-scale environmental structure with a level of control that is difficult to achieve in traditional culture systems.

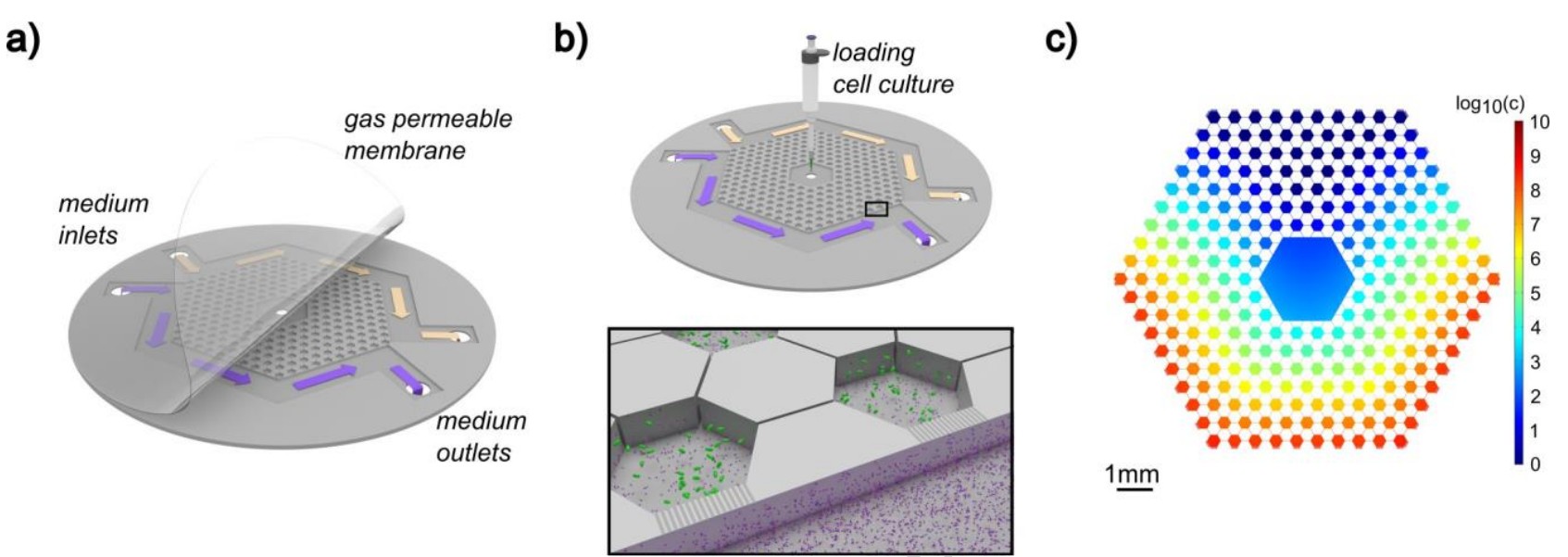

In this study, researchers used a microfluidic chip made of interconnected microchambers to expose motile E. coli to a gradient of the highly lytic T4r phage. The microfabricated platform created a landscape of different phage concentrations and small ecological niches, allowing the team to observe how bacterial populations moved, clustered, survived, and evolved over time.

One of the most striking findings was that phage-insensitive bacterial populations appeared within 12 to 36 hours. These populations often emerged in low-to-intermediate phage regions, rather than at the lowest or highest phage concentrations. The resistant populations did not simply arise as scattered individual cells. They appeared in localized “hot spots,” where bacteria formed transient clusters and biofilm-like patches before expanding through the microfluidic habitat.

This is an important example of what microfluidic ecology can reveal. In a flask, spatial patterns are mostly erased. On a microfluidic chip, those patterns become visible. The study shows that the location of bacteria, the shape of the phage gradient, and the physical structure of the environment can all influence where resistance begins and how it spreads.

Genome sequencing added another layer to the story. As expected, some resistant isolates carried mutations in genes linked to phage receptor function, including ompC, which is involved in T4 attachment. But the study also found mutations in genes associated with surface adhesion, lipopolysaccharide structure, biofilm formation, and stress responses, including rfaP, csgB, csgD, and rcsC. Together, these findings suggest that resistance was not driven by receptor mutation alone. The microfluidic environment appeared to favor a combination of genetic resistance and altered biofilm-related behavior.

For phage therapy, this has important implications. Many bacterial infections are not well-mixed systems. They are structured, heterogeneous, and often biofilm-associated. A phage treatment that performs well in a uniform liquid culture may behave differently in a compartmentalized tissue, wound, catheter, lung, or gut environment. By using a microfluidic device to recreate some of this spatial complexity, the study shows how quickly bacteria can find evolutionary escape routes when gradients and microhabitats are present.

The broader message is that phage resistance is not only a genetic process. It is also spatial, ecological, and physical. Microfabrication allows researchers to build controlled microbial landscapes where these dynamics can be studied directly. With microfluidics, it becomes possible to watch evolution unfold across connected niches, rather than only measuring the final outcome after it has happened.

This work is a strong reminder that evolution happens in space. When bacteria and phages meet inside complex microfluidic ecologies, the outcome depends not only on which mutations appear, but also on how populations are distributed, connected, stressed, and protected by transient biofilm-like structures. For researchers working on phage therapy, antimicrobial resistance, and microbial ecology, microfluidic chips offer a valuable window into the small-scale environments where survival strategies begin.

Genome sequencing added another layer to the story. As expected, some resistant isolates carried mutations in genes linked to phage receptor function, including ompC, which is involved in T4 attachment. But the study also found mutations in genes associated with surface adhesion, lipopolysaccharide structure, biofilm formation, and stress responses, including rfaP, csgB, csgD, and rcsC. Together, these findings suggest that resistance was not driven by receptor mutation alone. The microfluidic environment appeared to favor a combination of genetic resistance and altered biofilm-related behavior.

Figures are reproduced from Nagy, K., Valappil, S.K., Phan, T.V. et al. Gradient metapopulation microfluidic ecologies shape genetic and biofilm drivers of T4r phage resistance in E. coli. npj Biofilms Microbiomes (2026). https://doi.org/10.1038/s41522-026-00959-z under a Creative Commons Attribution 4.0 International License.

Read the original article: Gradient metapopulation microfluidic ecologies shape genetic and biofilm drivers of T4r phage resistance in E. coli
